kubernetes ingress controller using traefik – Part 3

Kubernetes ingress is an API object that manages the external access to the kubernetes services. It provides routing rules to provide external users access to the services in a Kubernetes cluster, typically via HTTPS/HTTP. Ingress helps to provide an easy method to access the services without creating multiple load balancers or using the NodePort. In the last article, we have seen how to expose the Nginx service using a load balancer. Since it was in a bare-metal environment, we deployed MetalLB to simulate the load balancer. This setup might look easy at first sight but in the real environment, you might end up deploying multiple load balancers to expose the services.

To avoid multiple load balancers and multiple external IPs, we can use an Ingress controller to route the traffic from the load balancer to kubernetes services. An Ingress does not expose arbitrary ports or protocols other than HTTP/HTTPS. Exposing other services to the internet typically uses a service of type Service.Type=NodePort or Service.Type=LoadBalancer.

Kubernetes doesn’t provide the ingress controllers but supports multiple third-party ingress controllers. Traefik is one of the most widely used ingress controllers for Kubernetes.

Let’s see how to deploy and configure traefik to expose the kubernetes services to the outside world.

Prerequisite:

1. Kubernetes Cluster 1.14+
2. MetalLB – LoadBalancer
3. Setup a dynamic NFS storage to create a persistent volume

Deploying Traefik v2

1. Log into the kubernetes cluster with the required privileges for the deployment.

2. Set up the traefik helm repo for deployment.

lingesh@uamaster1:~$ helm repo add traefik https://helm.traefik.io/traefik
"traefik" has been added to your repositories

lingesh@uamaster1:~$ helm repo update
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "kasten" chart repository
...Successfully got an update from the "traefik" chart repository
...Successfully got an update from the "prometheus-community" chart repository
...Successfully got an update from the "jupyterhub" chart repository
...Successfully got an update from the "bitnami" chart repository
Update Complete. ⎈Happy Helming!⎈
lingesh@uamaster1:~$

3. Find the traefik version on the repo.

lingesh@uamaster1:~$ helm search repo traefik
NAME            CHART VERSION   APP VERSION     DESCRIPTION
traefik/traefik 10.24.3         2.8.5           A Traefik based Kubernetes ingress controller
lingesh@uamaster1:~$

4. Download the value file from the helm repo to enable the persistent volume.

lingesh@uamaster1:~$ helm show values traefik/traefik > traefik-values.yaml
lingesh@uamaster1:~$

5. Update the value file with the persistence field enabled to hold the TLS certificates.

lingesh@uamaster1:~$ cat traefik-values.yaml |grep -a1 persistence:
# It will persist TLS certificates.
persistence:
  enabled: true
lingesh@uamaster1:~$

6. Create a new namespace called “traefik”

lingesh@uamaster1:~$ kubectl create ns traefik
namespace/traefik created

7. Deploy the traefik helm chart with the override value file.

lingesh@uamaster1:~$  helm install traefik traefik/traefik --values traefik-values.yaml -n traefik
NAME: traefik
LAST DEPLOYED: Wed Sep 21 17:38:04 2022
NAMESPACE: traefik
STATUS: deployed
REVISION: 1
TEST SUITE: None
lingesh@uamaster1:~$

8. Here is the traefik deployment status. In My case, the external load balancer IP is “192.168.23.150”.

lingesh@uamaster1:~$ kubectl get all -n traefik
NAME                           READY   STATUS    RESTARTS   AGE
pod/traefik-675bcc5d95-lqw4s   1/1     Running   0          88s

NAME              TYPE           CLUSTER-IP     EXTERNAL-IP      PORT(S)                      AGE
service/traefik   LoadBalancer   10.233.48.67   192.168.23.150   80:30543/TCP,443:31708/TCP   88s

NAME                      READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/traefik   1/1     1            1           88s

NAME                                 DESIRED   CURRENT   READY   AGE
replicaset.apps/traefik-675bcc5d95   1         1         1       88s
lingesh@uamaster1:~$

Traefik is ready to serve the incoming traffic.

Test the traefik deployment:

1. Let’s test the traefik ingressroute. Here is my existing nginx deployment and the service is listening to the clusterIP.

lingesh@uamaster1:~$ kubectl get all -n nginx-test
NAME                                    READY   STATUS    RESTARTS   AGE
pod/nginx-deployment-74d589986c-lxkfq   1/1     Running   0          2d1h

NAME                       TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)   AGE
service/nginx-deployment   ClusterIP   10.233.11.165   <none>        80/TCP    2d

NAME                               READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/nginx-deployment   1/1     1            1           2d1h

NAME                                          DESIRED   CURRENT   READY   AGE
replicaset.apps/nginx-deployment-74d589986c   1         1         1       2d1h
lingesh@uamaster1:~$

2. For the above-mentioned nginx deployment, create the ingressroute config like the below.

---
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
  name: nginx-deployment
  namespace: nginx-test
spec:
  entryPoints:
    - web
  routes:
    - match: Host(`nginx.ua.com`)
      kind: Rule
      services:
        - name: nginx-deployment
          port: 80

3. Create the ingress resource for nginx deployment.

lingesh@uamaster1:~$ kubectl create -f nginx_ingress.yaml
ingressroute.traefik.containo.us/nginx-deployment created

lingesh@uamaster1:~$ kubectl get ingressroute -n nginx-test
NAME               AGE
nginx-deployment   21s
lingesh@uamaster1:~$

4. Refer to step 8 to know your external IP. For this IP, you need to create a DNS A record to access the Nginx deployment. (192.168.23.150). In my case, I have added the following entry in my host’s file.

192.168.23.150      nginx.ua.com

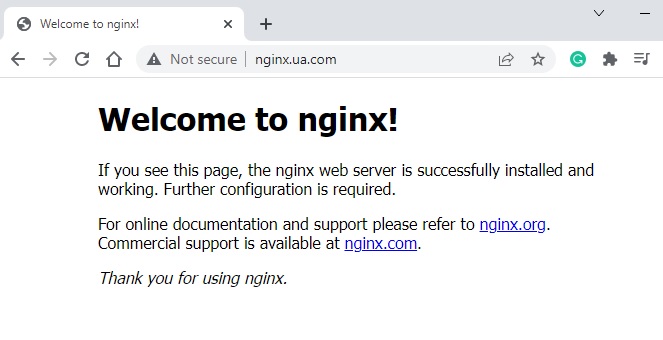

5. Open the browser and try to access nginx.ua.com.

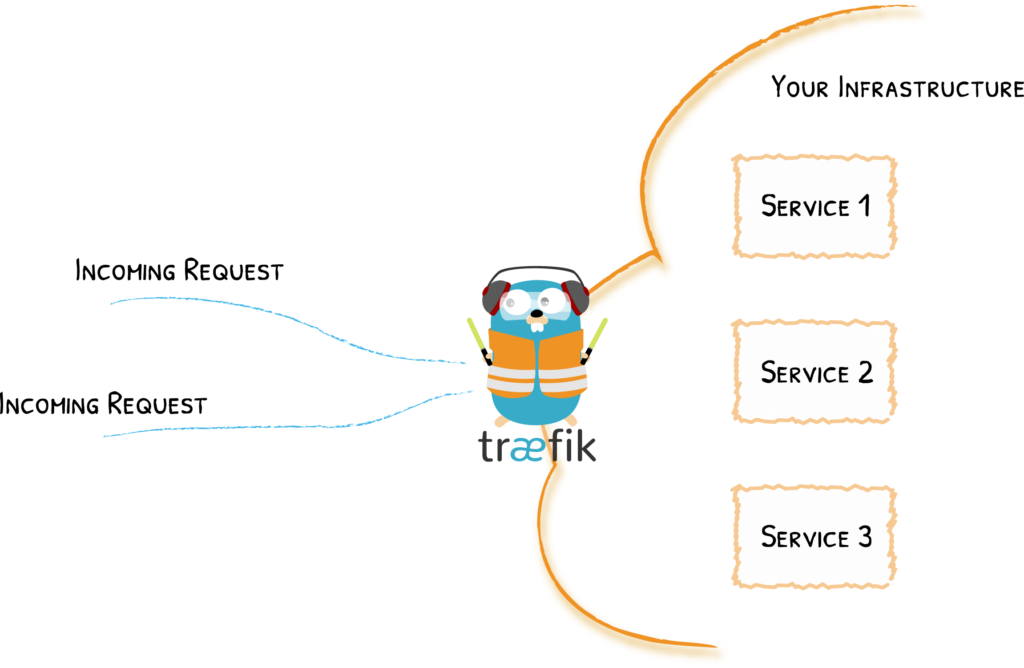

If you wonder how we are able to access the Nginx deployment from Kubernetes, just look at the below diagram one more.

Expose/Enable traefik GUI:

Traefik offers readonly GUI portal to view the ingress configs and entry points. Let’s expose the traefik port 9000 to view the webpage.

1. Create a traefik ingressroute manifest for the dashboard.

lingesh@uamaster1:~$ cat traefik_dashboard.yaml
# dashboard.yaml
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
  name: traefik-dashboard
  namespace: traefik
spec:
  entryPoints:
    - web
  routes:
    - match: Host(`traefik.ua.com`)
      kind: Rule
      services:
        - name: api@internal
          kind: TraefikService
lingesh@uamaster1:~$

2. Create the ingressroute resource using kubectl.

lingesh@uamaster1:~$ kubectl create -f traefik_dashboard.yaml -n traefik
ingressroute.traefik.containo.us/traefik-dashboard created

lingesh@uamaster1:~$ kubectl describe  ingressroute traefik-dashboard -n traefik
Name:         traefik-dashboard
Namespace:    traefik
Labels:       <none>
Annotations:  <none>
API Version:  traefik.containo.us/v1alpha1
Kind:         IngressRoute
Metadata:
  Creation Timestamp:  2022-09-22T03:12:32Z
  Generation:          1
  Managed Fields:
    API Version:  traefik.containo.us/v1alpha1
    Fields Type:  FieldsV1
    fieldsV1:
      f:spec:
        .:
        f:entryPoints:
        f:routes:
    Manager:         kubectl-create
    Operation:       Update
    Time:            2022-09-22T03:12:32Z
  Resource Version:  1498880
  UID:               e86c4083-aa35-4621-89bf-6e369d795315
Spec:
  Entry Points:
    web
  Routes:
    Kind:   Rule
    Match:  Host(`traefik.ua.com`)
    Services:
      Kind:  TraefikService
      Name:  api@internal
Events:      <none>
lingesh@uamaster1:~$

3. Ensure that you have created the DNS A record for the traefik host rule on your DNS server or local “hosts” file to resolve the IP to FQDN.

192.168.23.150      nginx.ua.com
192.168.23.150      traefik.ua.com

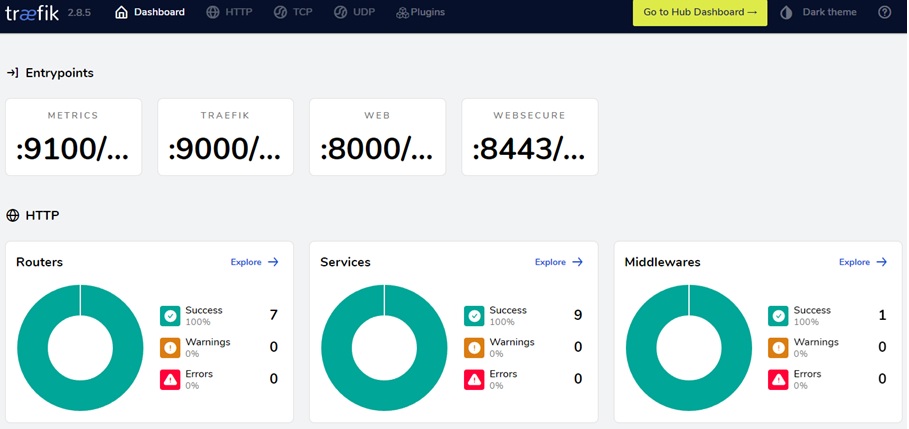

4. Try to access nginx.ua.com. You should be able to see the traefik dashboard like below.

Conclusion:

We have deployed the traefik ingress controller and enabled ingress for one of the services successfully. Ingress controller to keep the environment scalable and reduce the number of load balancers in the environment to expose the services. In the end, we have enabled the traefik dashboard using the ingressroute. In the next article, we will look at TLS and Middleware options available in the traefik.
