Openshift secure route TLS – Is it possible to use secrets?

The OpenShift Container Platform provides multiple options to provide access to external clients. The route is one of the methods to provide the access to external clients. We can enable TLS termination on route to encrpt the data sent over to the external clients. We need to update the valid certificate and private key in the route manifest to achieve this. Kindly refer to the last article to know how to enable TLS termination. In the DevOps practice, all the kubernetes/openshift manifests will be stored in the git repository. Storing the TLS certificate and key in the git is not a good practice.

Can the Openshift route have secrets in it? Is it possible to use the secrets in the route definition? No. OCP Routes cannot use secrets. It expects certs/keys in their route definition only. In order to enable a router to consume TLS credentials from OCP Secret, it requires access to all Secret which is considered a security risk as per the RedHat support article.

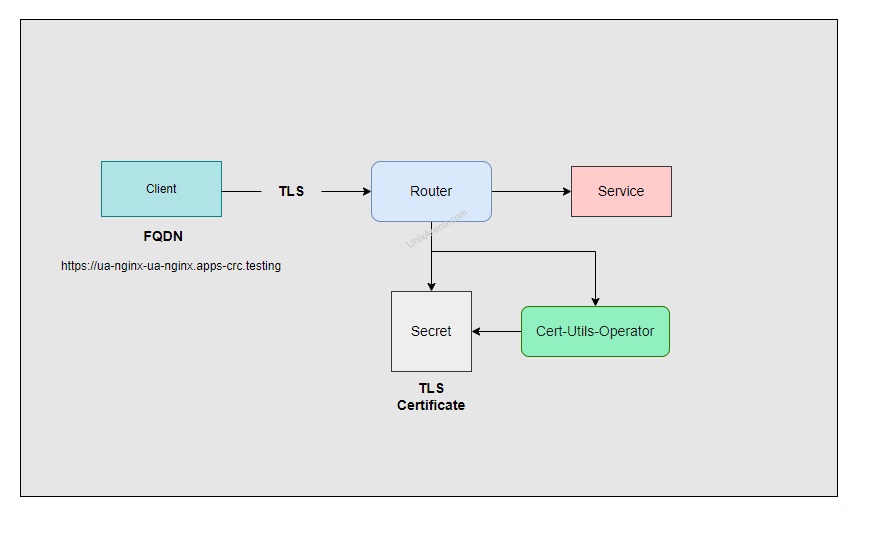

This article will provide the workaround to eliminate certificates and keys to be stored in the git repository using the operator – Cert-utils-operator

Installing Cert Util Operator

1. Install the cert util operator using the helm chart.

$ oc new-project cert-utils-operator
$ helm repo add cert-utils-operator https://redhat-cop.github.io/cert-utils-operator
$ helm repo update
$ helm install cert-utils-operator cert-utils-operator/cert-utils-operato

2. Check the operator status

[lingesh@okd4 ~]$ oc get all
NAME                                                          READY   STATUS    RESTARTS       AGE
pod/cert-utils-operator-controller-manager-59f9f8bc5f-5jp7h   2/2     Running   60 (15m ago)   23d

NAME                                                             TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)    AGE
service/cert-utils-operator-controller-manager-metrics-service   ClusterIP   10.217.4.84   <none>        8443/TCP   23d

NAME                                                     READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/cert-utils-operator-controller-manager   1/1     1            1           23d

NAME                                                                DESIRED   CURRENT   READY   AGE
replicaset.apps/cert-utils-operator-controller-manager-59f9f8bc5f   1         1         1       23d
[lingesh@okd4 ~]$

Create a secret for TLS cert & key:

1. Let’s store the TLS certificate and key on the OCP secret. If you are wondering how to create the self-signed certificate, kindly check the previous article.

[lingesh@okd4 certs]$ oc create secret tls nginx.crt --key=MyKey.key --cert=MyCertificate.crt
secret/nginx.crt created
[lingesh@okd4 certs]$

2. List the newly created secret.

[lingesh@okd4 certs]$ oc get secret nginx.crt
NAME        TYPE                DATA   AGE
nginx.crt   kubernetes.io/tls   2      115s
[lingesh@okd4 certs]$

Expose the deployment using a route with TLS

1. If you are following my previous article, you can see that I have exposed the service using HTTP & HTTPS by directly updating the key and certificate in the route manifest.

2. We will create a similar manifest without updating the TLS cert & key in the route manifest. Instead, we will update the “cert util operator” annotate.

3. Here is my test nginx deployment and removed the route to use the operator.

[lingesh@okd4 certs]$ oc get all
NAME                            READY   STATUS    RESTARTS   AGE
pod/ua-nginx-7bd5c655bb-z8nvk   1/1     Running   3          23d

NAME               TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)   AGE
service/ua-nginx   ClusterIP   10.217.5.76   <none>        80/TCP    23d

NAME                       READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/ua-nginx   1/1     1            1           23d

NAME                                  DESIRED   CURRENT   READY   AGE
replicaset.apps/ua-nginx-7bd5c655bb   1         1         1       23d

[lingesh@okd4 certs]$

4. Create the route manifest to expose the service outside with TLS enabled. Let’s assume that if you are storing this file on the git repository, there is no harm since we are not hardcoding any certificate or keys in the route manifest. That’s the whole purpose of the operator.

We have just added annotations by referring to the TLS secret name “nginx.crt“. Left the “tls.crt” & “tls.key” values empty.

apiVersion: route.openshift.io/v1
kind: Route
metadata:
  annotations:
    cert-utils-operator.redhat-cop.io/certs-from-secret: nginx.crt
  labels:
  name: ua-nginx
  namespace: ua-nginx
spec:
  host: ua-nginx-ua-nginx.apps-crc.testing
  port:
    targetPort: http
  tls:
    tls.crt: ""
    tls.key: ""
    termination: edge
  to:
    kind: Service
    name: ua-nginx
    weight: 100
  wildcardPolicy: None

5. Create a route using the above manifest.

[lingesh@okd4 ~]$ oc create -f route.nginx.yaml
route.route.openshift.io/ua-nginx created
[lingesh@okd4 ~]$ oc get route
NAME       HOST/PORT                            PATH   SERVICES   PORT   TERMINATION   WILDCARD
ua-nginx   ua-nginx-ua-nginx.apps-crc.testing          ua-nginx   http   edge          None
[lingesh@okd4 ~]$

6. Let’s verify the route resource.

[lingesh@okd4 ~]$ oc get route
NAME       HOST/PORT                            PATH   SERVICES   PORT   TERMINATION   WILDCARD
ua-nginx   ua-nginx-ua-nginx.apps-crc.testing          ua-nginx   http   edge          None
[lingesh@okd4 ~]$

[lingesh@okd4 ~]$ oc get route ua-nginx -o yaml
apiVersion: route.openshift.io/v1
kind: Route
metadata:
  annotations:
    cert-utils-operator.redhat-cop.io/certs-from-secret: nginx.crt
  creationTimestamp: "2022-12-02T18:09:30Z"
  name: ua-nginx
  namespace: ua-nginx
  resourceVersion: "417278"
  uid: fa9da0f8-ee74-44db-bf44-c0d96a8b87a0
spec:
  host: ua-nginx-ua-nginx.apps-crc.testing
  port:
    targetPort: http
  tls:
    certificate: |
      -----BEGIN CERTIFICATE-----
      MIIFfzCCA2egAwIBAgIUdKIf+BEhAAZwHJ2hxKXOGCxExQowDQYJKoZIhvcNAQEL
      BQAwTzELMAkGA1UEBhMCSU4xCzAJBgNVBAgMAktBMQswCQYDVQQHDAJFQzELMAkG
      A1UECgwCVUExGTAXBgNVBAMMEGFwcHMtY3JjLnRlc3RpbmcwHhcNMjIxMTAyMTY0
      OTA4WhcNMjMxMTAyMTY0OTA4WjBPMQswCQYDVQQGEwJJTjELMAkGA1UECAwCS0Ex
      CzAJBgNVBAcMAkVDMQswCQYDVQQKDAJVQTEZMBcGA1UEAwwQYXBwcy1jcmMudGVz
      dGluZzCCAiIwDQYJKoZIhvcNAQEBBQADggIPADCCAgoCggIBAL/zww/58w6c/UGH

Here we can see that certificate has been automatically populated by the operator in the route manifest. You could verify the certificate in the browser by clicking the HTTPS section.

Conclusion:

In most cases, we might end up storing the certificate and key on git repositories. In some cases, we might have packaged it in helm and stored it in the artifactory. Cert-Util-Operator just populates the TLS certificate and key from secrets to remove the route limitation in OCP (Openshift container platform) and improves security by not storing in git repos and artifactory.
