kubernetes – Traefik Middlewares – Part 5

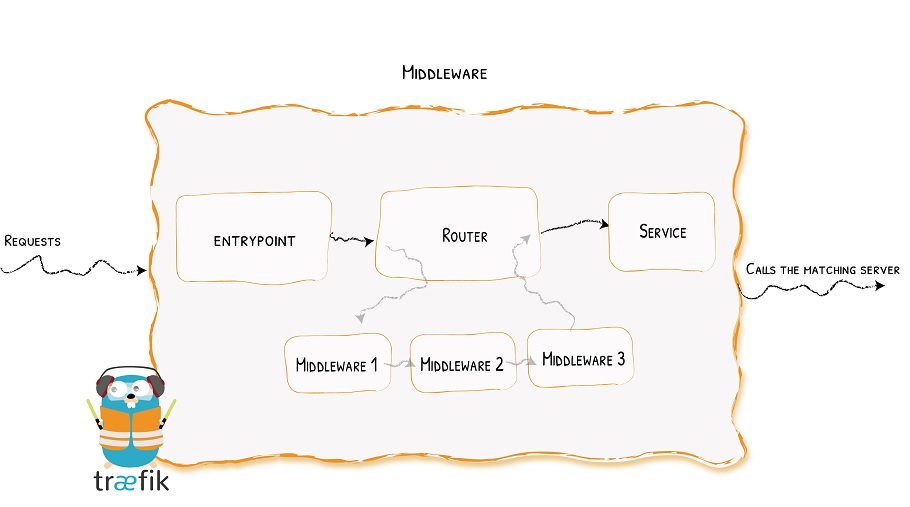

Middleware helps to tweak the requests before reaching the actual service in kubernetes. Traefik support multiple middleware and one can use them depending on their needs. Some of the middleware helps with basic authentication, and some of the middleware helps with redirection. Middleware also helps to modify the request headers for incoming requests. The following image is from traefik documentation which explains how the traffic flow happens and the role of middlewares. Traefik-supported middleware is categorized into two categories. 1. HTTP 2. TCP. This article will demonstrate Trafik’s BasicAuth middleware.

Traefik Middleware – BasicAuth:

Let’s try the traefik BasicAuth middleware. It restricts access to your services to known users by enabling authentication.

1. Create the encrypted secret which consists username and password. My username is “lingesh” and my password is “test@123”

root@kmaster1:~# htpasswd -nb lingesh test@123 | base64
bGluZ2VzaDokYXByMSR6TFR5MEZRaiR4VXMyOFVSMWE4eDNER0xCZXA4amwxCgo=
root@kmaster1:~#

2. Create a secret manifest like below. Create the secret.

apiVersion: v1
kind: Secret
metadata:
  name: authsecret
data:
  users: |
    bGluZ2VzaDokYXByMSR6TFR5MEZRaiR4VXMyOFVSMWE4eDNER0xCZXA4amwxCgo=

root@kmaster1:~# kubectl create -f secret_basic_auth.yaml
secret/basicauth created

root@kmaster1:~# kubectl get secret basicauth
NAME        TYPE     DATA   AGE
basicauth   Opaque   1      10s
root@kmaster1:~#

3. Create a “BasicAuth” middleware manifest like below and create the resource.

root@kmaster1:~# cat Middleware_basic_auth.yaml
apiVersion: traefik.containo.us/v1alpha1
kind: Middleware
metadata:
  name: nginx-basicauth
spec:
  basicAuth:
    secret: authsecret
root@kmaster1:~#

root@kmaster1:~# kubectl create -f Middleware_basic_auth.yaml
middleware.traefik.containo.us/nginx-basicauth created
root@kmaster1:~#
root@kmaster1:~# kubectl get middlewares
NAME              AGE
nginx-basicauth   118s
root@kmaster1:~#

4. Create a new ingressroute manifest by associating the middleware that has been created in the above step.

apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
  name: nginx
  namespace: default
spec:
  entryPoints:
    - web
  routes:
    - match: Host(`nginx.ua.com`)
      kind: Rule
      middlewares:
        - name: nginx-basicauth
      services:
        - name: nginx-deployment
          port: 80

Create the ingressroute.

root@kmaster1:~# kubectl create -f ingress_basic_auth.yaml
ingressroute.traefik.containo.us/nginx created
root@kmaster1:~# kubectl get ingressroute
NAME    AGE
nginx   6s
root@kmaster1:~#

Test our work:

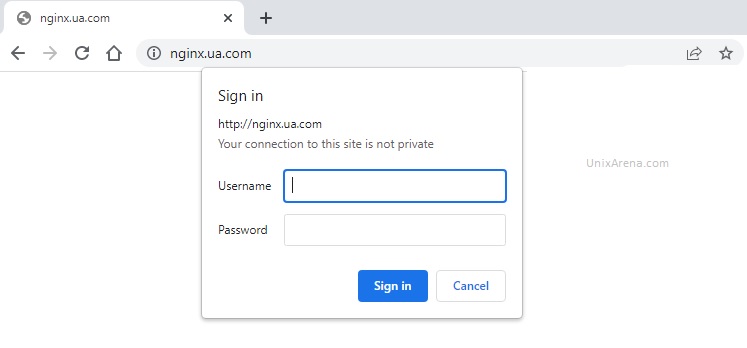

1. Try to access the URL “nginx.ua.com”. It should prompt you to enter a username and password.

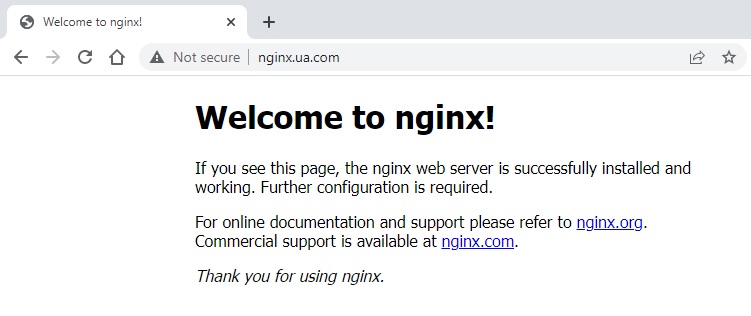

2. Enter the secrets which you have created in step#1 in the previous section to authenticate. You should be able to see the nginx welcome page.

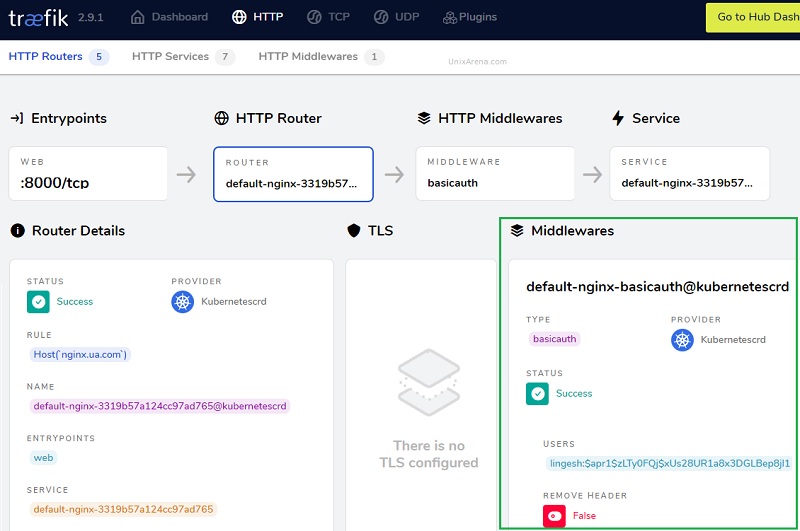

3. You can check the middleware details in the traefik dashboard as well.

We have successfully enabled BasicAuth middleware in the traefik ingress for the nginx deployment. Hope this article is informative to you.
